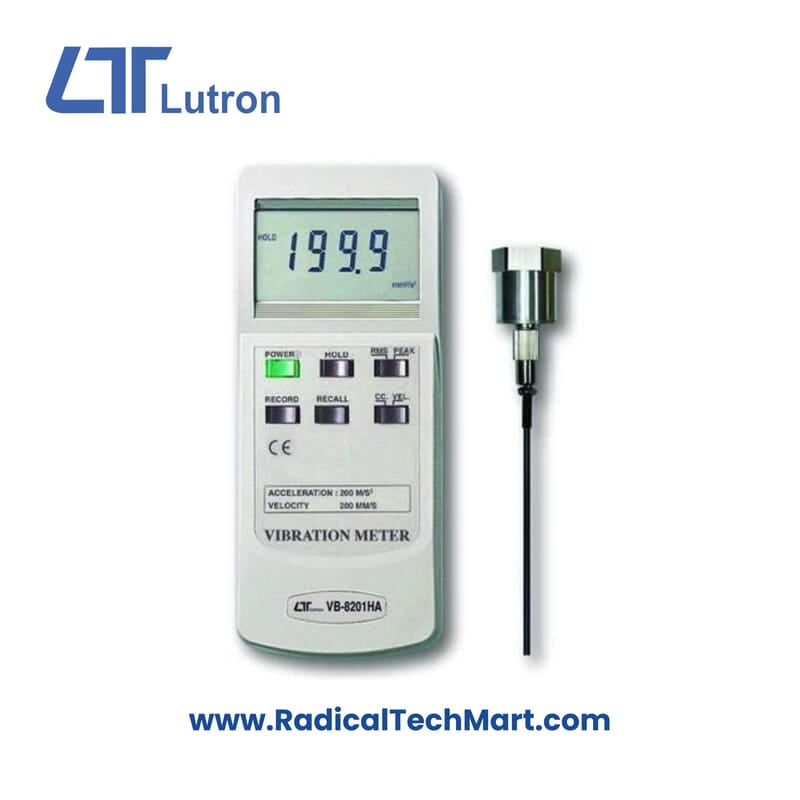

Lutron VB-8201HA Vibration Meter

Lutron Vibration Meter Specifications

Manufacturer

• Brand: Lutron

Model/Type

• Model Name/Number: (Not specified)

Display & Measurement

• Display Type: Super large LCD
• Display Size: 61 mm x 34 mm
• Measurement Parameters:
  • Velocity: 0.5 to 199.9 mm/s
  • Acceleration: 0.5 to 199.9 m/s²
  • RMS Value
  • Peak Value
  • Data Hold
  • Max/Min Value

Range & Calibration

• Velocity Range: 0.5 to 199.9 mm/s
  • Calibration Point: 50 mm/s (160 Hz)
• Acceleration Range: 0.5 to 199.9 m/s²
  • Calibration Point: 50 m/s² (160 Hz)
• Frequency Range: 10 Hz to 1 kHz
• Accuracy: ± (5% + 2 d) reading @ 80 Hz, 160 Hz, @ 23 ± 5°C

Operating Conditions

• Operating Temperature: 0 to 50°C (32 to 122°F)
• Operating Humidity: Less than 80% RH
• Power Supply: DC 9V battery (006P, MN1604 (PP3) or equivalent)
• Power Consumption: Approx. DC 6 mA

Warranty

• As per Lutron's warranty policy
